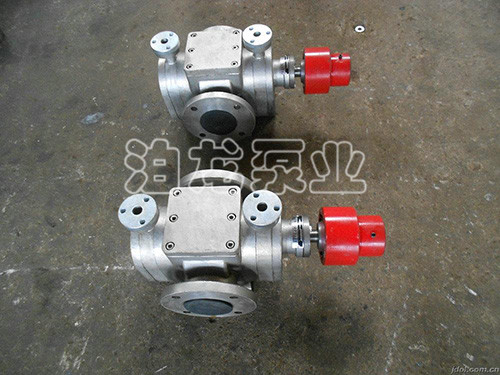

RY型高溫導熱油泵

RY型高溫導熱油泵技術、,在熱態下能長期穩定運轉無泄漏,無附加冷卻系統,使用等特點,在我國載熱體加熱系統中   了廣泛的使用,已經進入石油、化工、橡膠、塑料、制藥、紡織、印染、筑路、食品等各個工業。

RY型高溫導熱油泵主要用于輸送不含固體顆粒的弱腐性高溫液體,使用溫度≤370℃,是一種理想的循環泵。該導熱油泵廣泛應用紙餐盒高溫定型、動態硫化輪胎及膠機械、平板硫化、橡膠、烘干、飼料烘干、印染、化工、膠合板生產、   卷材生產、瀝青加熱、掛面烘干等行業。

RY型高溫導熱油泵結構合理,性能優良,使用。適用于輸送不含固體顆粒的高溫液體,其程度和使用溫度取決于與介質接觸的主要零件的材料(分三類:1.HT200;II.ZG230-450;III.1Cr18Ni9Ti,OCr18Ni12-Mo2Ti)

型號意義:以RY100-65-200A為例

RY10065200A
熱油泵泵體入口直徑泵體出口直徑葉輪名義外徑表示葉輪外徑初次切割(D、E表示變型葉輪 )

RY型風冷式導熱油泵性能參數表:

泵型號流量
m3/h
揚程
m
轉速 n
r/min
功率 kw效率η
%
電機(Y型)
機座號
軸功率配用功率
15-15-10031028000.450.7520801
15-15-100A21028000.360.5518AO2-7122
15-15-100B11028000.20.3715AO2-7112
20-20-10011028000.090.3726AO2-7112
20-20-1251.52228000.220.7530801
40-25-160102829001.722.24590L
25-25-16032729000.531.53090S
32-32-16062829000.851.55090S
50-32-16012.53029001.903.057100L
50-32-200184029003.925.550132Sl
50-32-200A163229003.35442112M
50-32-25012.58029006.21144160Ml
65-50-160203229003.175.555132S1
65-40-200304829006.37.562132S2
65-40-200A253529004.05.559132S1
65-40-2502580290010.31553160M2
65-40-250A205129005.677.549132S2
65-40-31525125290018.93045200L1
65-40-3122.5100290015.32240180M
80-50-200505029009.71570160M2
80-50-200A454029007.81163160M1
80-50-200B403229006.377.555132S2
80-50-2505080290017.12258180M
80-50-250A4360290012.81555160M2
80-50-31550125290030.44556225M
80-50-3145100290023.63052200L1
100-65-20010050290018.42274180M
100-65-200A94442900162270180M
100-65-200B8738290013.81565160M2
100-65-200C8032290011.81559160M2
100-65-25010080290032.063768200L2
100-65-250A95722900293764200L2
100-65-250B9065290026.23061200L1
100-65-250C8550290020.33057200L1
100-65-315100125290050.067568280S
100-65-3195113290045.235564.63250M
100-65-315B90100290040.55560.50250M
100-65-315C8284290034.764554225M
125-100-20020050290035.44577225M
125-100-200A17840290026.63773200L2
125-100-250200702900475580250M
125-100-250A19063290041.65578250M
125-100-250B18057290037.94574225M
125-100-250C17051290032.154572225M
125-100-250D150702900404570225M
150-150-200350502900607580280S
150-150-200A313402900455576250M
200-150-40035050145061.87578280S
200-150-400A33045145052.87577280S
250-200-40050050148086.211079315S
250-200-50050080148013616076.5315M
250-200-500A400501480759073280M
